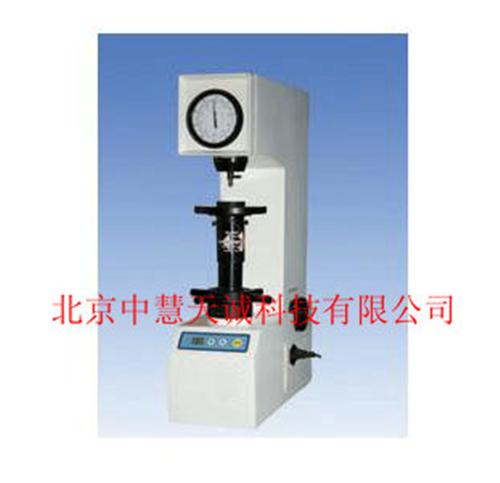

電動表面洛氏硬度計
型號：LRHRM-45DT |
貨號：ZH5190 |
產品簡介
電動表面洛氏硬度計是一種通過電動加載、保荷卸荷的半自動測試金屬材料表面硬度的洛氏硬度計。具有操作%簡便、壓痕微小、精度高等特點。
適用范圍
表面淬火鋼，銅、鋁合金薄板，帶鋼,硬質合金鋼，鍍鋅，鍍鉻，鍍錫，材料表面熱處理和化學表面處理的%種金屬材料。
Motorized Superficial Rockwell Hardness Tester adopts motorized testing method. Its testing force can be loaded, kept and unloaded automatically. Avoid man-made error and easy to use. The characteristics of the instrument is light testing force and therefore, leaving very small indentation.
Usage Range:
Surface hardened steel, copper, aluminum alloy thin sheet, hard alloy steel, zinc layers, chrome layers, tin layers, surface hardened treating and chemical treating materials, etc.
，數據（Technical Specifications）
|
表面洛氏標尺
(Superficial Rockwell Scales) |
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
|
|
初試驗力（Initial Testing Force） |
3Kg(29.42N) |
|
試驗力（All Testing Force） |
15Kg(147.1N),30Kg(294.2N),45Kg(441.3N) |
|
硬度讀取
(Indication of Hardness Value) |
表盤式（Dial ） |
|
保菏時間(Duration Time) |
2 ~ 60S |
|
試件，高度
Max. Height of Specimen |
170mm |
|
儀器尺寸(長X寬X高)
(Overall Dimension：LXWXH) |
520X240X700MM |
|
儀器重量(Net Weight) |
80 Kg |
|
電源( Power Supply) |
AC220V + 5%, 50~60 Hz |
|
執行標準 (Carried Standard) |
GB/T230.2 ，標準、JJG112檢定規程
GB/T230.2 Chinese Standard and JJG112 Testing Rule |
|
標準配件、附件
(Standard Accessories) |
金剛石洛氏壓頭，直徑1.5875mm硬質合金球壓頭，大平試抬、中平試臺、V型試臺，硬度塊，電源線等
Diamond Rockwell Indenter, Diameter 1.5875mm Hard Alloy Steel Ball Indenter, Large Testing Table , Medium Testing Table and V-shaped Testing Table,HR30N and HR30T Hardness Blocks , Power Cable, etc |
|
|
|
