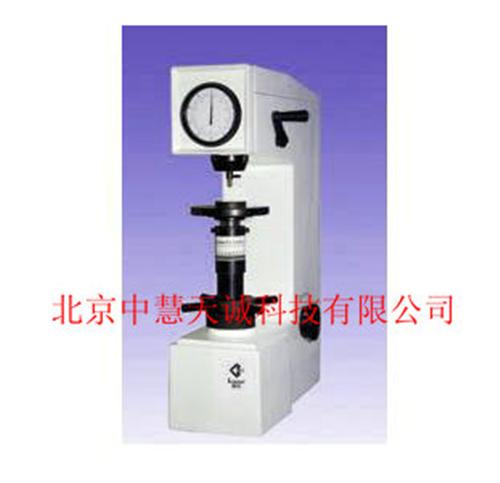

手動表面洛氏硬度計
型號：LRHRM-45 |
貨號：ZH5189 |
產品簡介
手動表面洛氏硬度計是一種普及型的，，用于測試金屬材料表面硬度的洛氏硬度計。本機采用機械式手動加載操作，無電器裝置。具有操作簡便，壓痕微小，精度高等特點。
適用范圍
表面淬火鋼，銅、鋁合金薄板，帶鋼,硬質合金鋼，鍍鋅，鍍鉻，鍍錫，材料表面熱處理和化學表面處理的%種金屬材料。
Manual Superficial Rockwell Hardness Tester adopts mechanical and manual testing method, without electrical device. With simple appearance, it uses as popular type Rockwell Hardness testing instrument.
Usage Range:
Surface hardened steel, copper, aluminum alloy sheet, hard alloy steel, zinc layers, chrome layers, tin layers, surface heat treating and chemical treating materials, etc.
，數據（Technical Specifications）
|
洛氏標尺(RockwellScales) |
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
|
初試驗力（Initial Testing Force） |
3Kg (29.42N) |
|
試驗力（All Testing Force） |
15Kg (147.1N), 30Kg (294.2N), 45Kg (441.3N) |
|
硬度讀取
(Indication of Hardness Value) |
表盤式（Dial ） |
|
試件，高度
Max.Heightof Specimen |
170mm |
|
儀器尺寸(Overall Dimension) |
520X240X700MM (長X寬X高, LXWXH) |
|
儀器重量(Net Weight) |
80 Kg |
|
執行標準 (Carried Standard) |
GB/T230.2 ，標準、JJG112檢定規程
GB/T230.2 Chinese Standard and JJG112 Inspection Rule |
|
標準配件、附件
(Standard Accessories) |
金剛石洛氏壓頭，直徑1.5875mm硬質合金球壓頭，大平試臺、中平試臺、V型試臺，硬度塊
Diamond Rockwell Indenter, Diameter 1.5875mm Hard Alloy Steel Ball Indenter, Large Testing Table , Medium Testing Table and V-shaped Testing Table, HRC and HRB Hardness Blocks |
|
|
|
