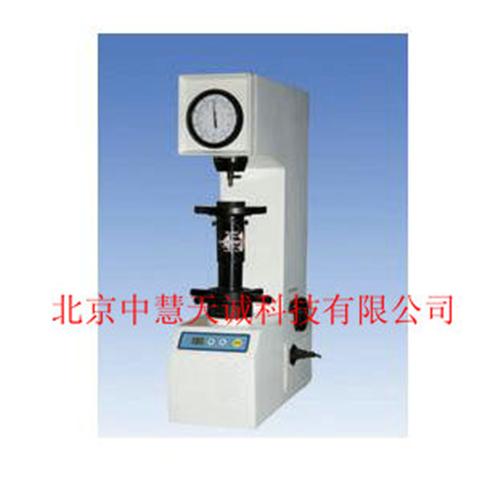

數顯塑料洛氏硬度計
型號：LRXHR-150 |
貨號：ZH5192 |
產品簡介
塑料洛氏硬度計是一種，測試非金屬塑料、硬橡膠、合成樹脂、摩擦材料及較軟金屬的硬度計。測試對象%，操作簡便。試驗力的施加、保荷和卸荷自動完成，消除人為操作誤差。
適用范圍
硬塑料、硬橡膠，鋁、錫、銅、軟鋼、合成樹脂及磨擦材料等。
Plastics Rockwell Hardness Tester adopts motorized testing method. Its testing force can be loaded, kept and unloaded automatically. Avoid man-made error and easy to use. It is therefore, welcomed by many users.
Usage Range:
Hard plastics, hard rubbers, aluminum, tin, copper, soft steel, synthetic resins, fricative materials, etc.
，數據（Technical Specifications）
|
塑料洛氏標尺
(PlasticsRockwell Scales) |
HRE, HRL, HRC, HRM, HRR |
|
初試驗力（Initial Testing Force） |
10Kg (98.07N) |
|
試驗力（All Testing Force） |
60Kg (588N), 100Kg (980N), 150Kg (1471N) |
|
硬度讀取
(Indication of Hardness Value) |
表盤式（Dial ） |
|
保菏時間(Duration Time) |
2 ~ 60S |
|
試件，高度
Max. Height of Specimen |
170mm |
|
儀器尺寸(Overall Dimension) |
520X240X700MM (長X寬X高, LXWXH) |
|
儀器重量(Net Weight) |
80 Kg |
|
電源( Power Supply) |
AC220V + 5%, 50~60 Hz |
|
執行標準 (Carried Standard) |
GB7407 ，標準、JJG884檢定規程
GB/7407 Chinese Standard and JJG884 Inspection Rule |
|
標準配件、附件
(Standard Accessories) |
直徑3.175、6.35、12.7mm球壓頭，大平試臺、中平試臺、V型試臺、硬度塊(4)，電源線
Diameter 3.175, 6.35, 12.7mm Ball Indenter, Large Testing Table , Medium Testing Table and V-shaped Testing Table, 4 pcs Hardness Blocks , Power Cable |
|
|
|
